| 品牌：IWATSU | 是否进口：否 | 产地：进口 |
| 加工定制：否 | 型号：HV-P60 | 测量范围：60KV |
| 测量精度：1 | 产品用途：电源 | 产品特性：功能包好 |

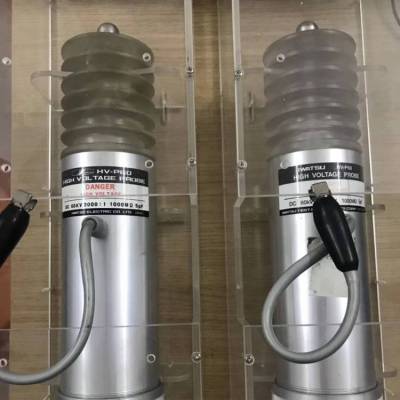

HV-P60
High-voltage waveforms of up to DC 60 kV, pulse 80 kV measured by oscilloscope
Wide bandwidth, DC to 50 MHz
Maintenance-free, due to use of silicon rubber - guarantees stable withstand voltage
SpecificationsMaximum input voltageDC 60 kV or AC peak*
Single-shot pulse of 80 kV, standard pulse waveBandwidthDC to 50 MHz, within -3 dBRise time7 ns or less (for probes only)Input RC1000 MW卤5% //5 pF 卤2 pFAttenuation2000:1 卤5%Cable lengthApprox. 4 mConnectorBNC typeUsed forOscilloscope with input RC: 1 MW, 15 to 50 pFSizeApprox. 88 mm () x 338 mm (L)WeightApprox. 3.5 kg (including accessories)AccessoriesMatching box, clamp, probe tip, ground lead, adjusting screwdriver, accessory bagOptions
High-voltage probe stand SK-301 (produced upon order)
The SK-301 can be used with both the HV-P60 and the HV-P30. It is attached by turning the probe bracket upside down (for HV-P60/HV-P30).
* The P-P voltage drops if the CW is 100 kHz or greater.
This is a passive probe that measures high-voltage waveforms by connecting to an oscilloscope, and has the following characteristics: the bandwidth is DC to 50 MHz, the maximum input is DC 60 kV, and the attenuation is 2000:1.
Characteristic curve
Frequency锛圫ine Wave锛�
Maximum Input Voltage and Frequency (Sine Wave) [HV-P60]
鈼廐V-P30
